Articulating-Boom Aerial Work Platform Truck
An articulating boom can reach around obstacles. Before choosing the chassis, check the reach path at the required basket load, the space for stabilizers and access along the route.
- Working Height
- 12–24 m
- Bucket Capacity
- 200 kg
- Boom Type
- Articulating Boom

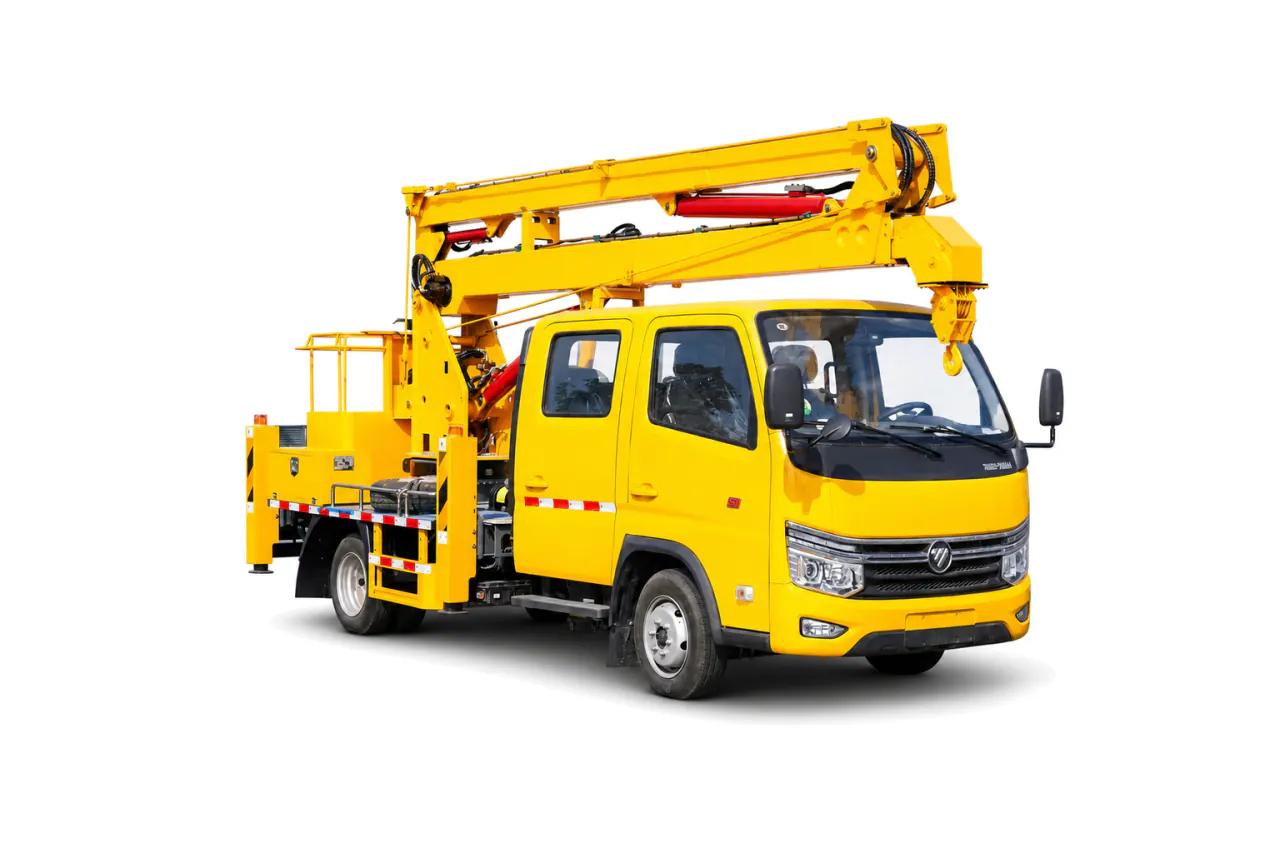

Front three-quarter view of the yellow articulating-boom truck, with folded boom above the crew cab and rear work platform (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Working Height | 12–24 m |
| Bucket Capacity | 200 kg |
| Boom Type | Articulating Boom |
| Rotation Angle | 360° |
| Outrigger extension and retraction time | ≤60 s |
| Operation Type | Manual / Wireless Remote |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Access around obstacles
Typical work
- Tree and facade maintenance
- Industrial plant access
- Over-obstacle utility work
Configuration details
- Jointed reach envelope
- Basket capacity and control system
- Outrigger and slope limits
- Transport height and route survey
- Working envelope
- Provide work points, obstacles, load, tools and required movement path.
- Stability and site
- Describe setup footprint, ground, access route and overhead hazards.
- Duty and transport
- State insulation duty, transport envelope, route and destination requirements.
Acceptance requirements
- Reconcile platform geometry, basket load, outriggers, controls, interlocks and emergency lowering to the approved configuration.
- Witness the agreed functional and stability-related checks using the selected model documentation and test method.
- Record completed-vehicle mass, axle loads, load charts, manuals, inspection records and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Planning the platform movement
Can the basket reach over or around the obstacle?
Check the entire movement path within the loaded working envelope, including the up-and-over section. Reaching the final basket position is only part of the access problem.
How much setup space is needed?
Allow for obstacles and tail swing as well as suitable ground support. Request the working envelope for the intended basket load and support arrangement; maximum height does not describe those conditions.
What does an access demonstration establish?
It records a particular movement and setup. It does not establish that the platform can safely pass every obstruction.
Who checks local operating requirements?
The importer needs to confirm vehicle and equipment requirements with the responsible parties at the destination, including inspection and operator qualifications.
Which dimensions are used for shipping?
Use the completed vehicle's stowed dimensions, with the articulated sections in their documented travel position. List detached accessories separately.
Response missions
Utility & Infrastructure EmergencyPrimary vehicle role. Utility restoration depends on reaching the work position at the intended basket load. Compare aerial vehicles for the restoration sequence, accounting for electrical requirements, ground support and route access.High-Rise & Elevated RescueConditional role; check the stated limitations. An elevated rescue vehicle needs to reach the work position at the intended load and have room to set up. Compare building access and ground conditions, and specify any fire-waterway duty separately.Project records
Ethiopia · HOWO Aerial Work Platform TruckRelated elevated rescue & access vehicles configuration · Order record reviewed. The recorded build may differ from this catalogue range.
Russia · ISUZU KV100 Aerial Work Platform TruckRelated elevated rescue & access vehicles configuration · Order record reviewed. The recorded build may differ from this catalogue range.Specify your Articulating-Boom Aerial Work Platform Truck
Share the operating duty, destination and equipment requirements.
