Telescopic-Boom Aerial Work Platform Truck
A telescopic-boom platform provides direct elevated access. Compare height and outreach at the required basket load, then check stabilizer spread, ground pressure and transport limits.
- Working Height
- 9–70 m
- Bucket Capacity
- 200/400 kg
- Boom structure
- 3–9 sections telescopic boom

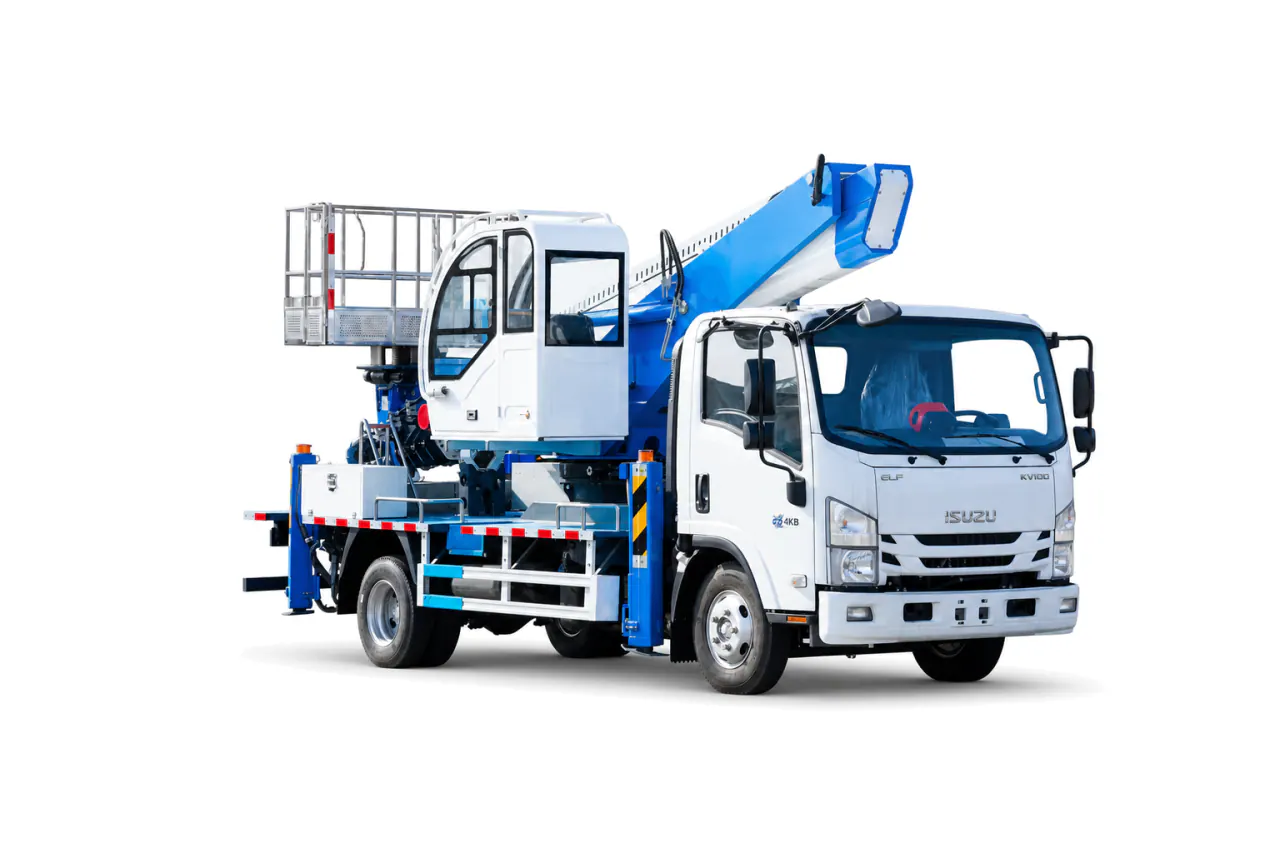

Front three-quarter view of the telescopic aerial truck, showing the blue-and-white boom and rear metal platform (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Working Height | 9–70 m |
| Bucket Capacity | 200/400 kg |
| Boom structure | 3–9 sections telescopic boom |
| Rotation Angle | 360° |
| Outrigger extension and retraction time | ≤60 s |
| Operation Type | Manual / Wireless Remote |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Height, outreach and setup
Typical work
- Utility and streetlight work
- Facade and sign maintenance
- Telecom and municipal access
Configuration details
- Reach chart and basket load

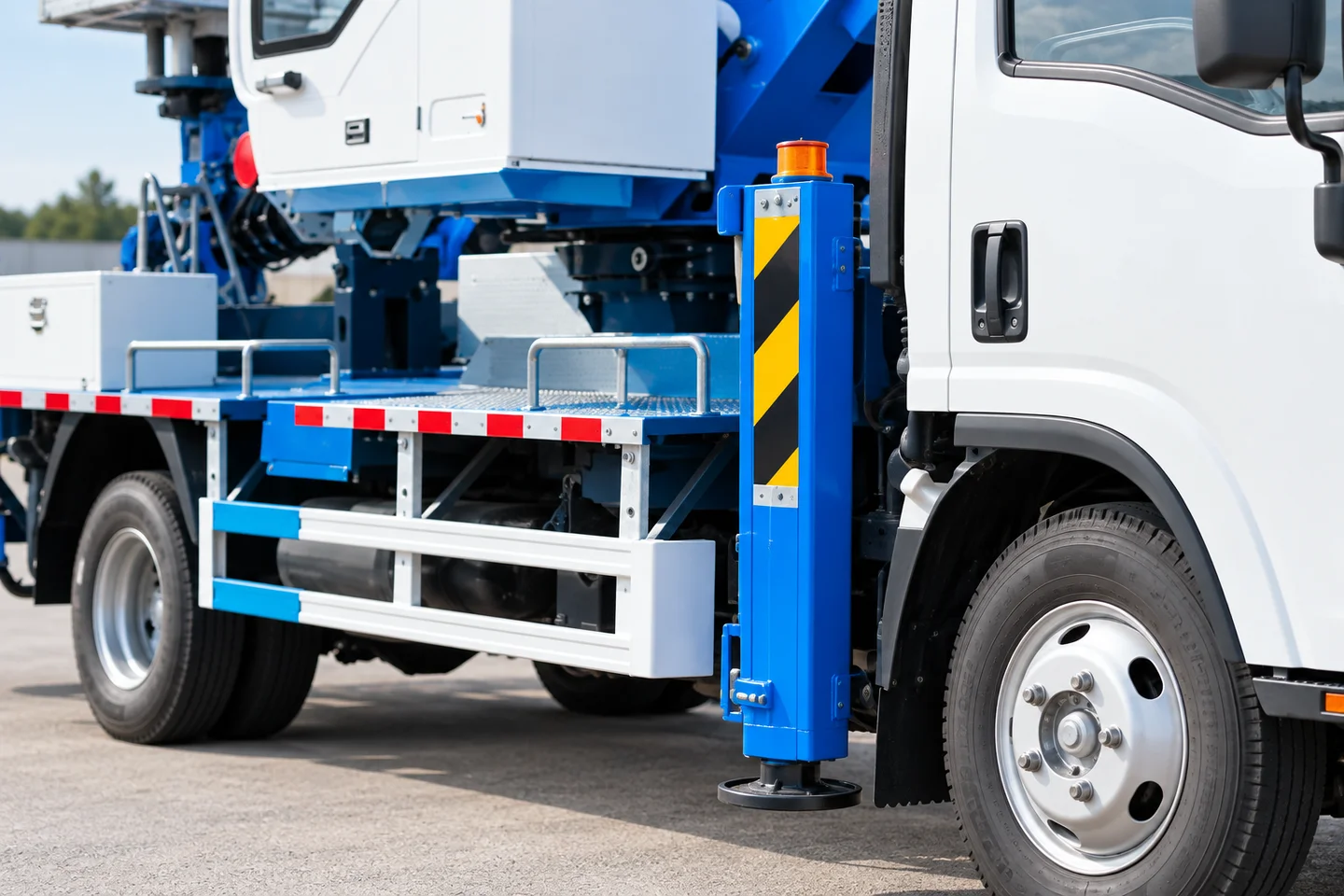

- Stabilizer spread and ground pressure
- Insulation or non-insulation requirement
- Chassis route and height limits
- Working envelope
- Provide work points, obstacles, load, tools and required movement path.
- Stability and site
- Describe setup footprint, ground, access route and overhead hazards.
- Duty and transport
- State insulation duty, transport envelope, route and destination requirements.
Acceptance requirements
- Reconcile platform geometry, basket load, outriggers, controls, interlocks and emergency lowering to the approved configuration.
- Witness the agreed functional and stability-related checks using the selected model documentation and test method.
- Record completed-vehicle mass, axle loads, load charts, manuals, inspection records and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Reach and equipment options
What outreach is available at the required height?
Find the work position on the selected boom's working envelope at the intended basket load. The height and capacity figures alone do not show the outreach available at every load. Check clearance along the full boom path, not just at the final basket position.
Is this an insulated platform?
Electrical protection must be specified separately and supported by records for the selected equipment. A telescopic boom is not necessarily insulated. A motion test verifies movement, not insulation, so electrical protection needs its own verification when ordered.
Which dimensions should I give the carrier?
Provide the completed truck's actual stowed height and overhang. Base-chassis dimensions leave out the fitted platform.
How are platform accessories recorded?
Identify removable accessories and supplied control equipment in the packing record. Distinguish loose items from installed equipment so both can be checked.
Specify your Telescopic-Boom Aerial Work Platform Truck
Share the operating duty, destination and equipment requirements.
