Rotator Wrecker
For heavy vehicles, rollovers or difficult access, agree the recovery method before choosing a rotator. Check the boom chart, outriggers, ground loads, winches and rigging, then confirm the mass for road travel.
- Rotator Lifting Capacity
- 30–50 t
- Rotation Angle
- 360°
- Boom Extension
- 3–10m

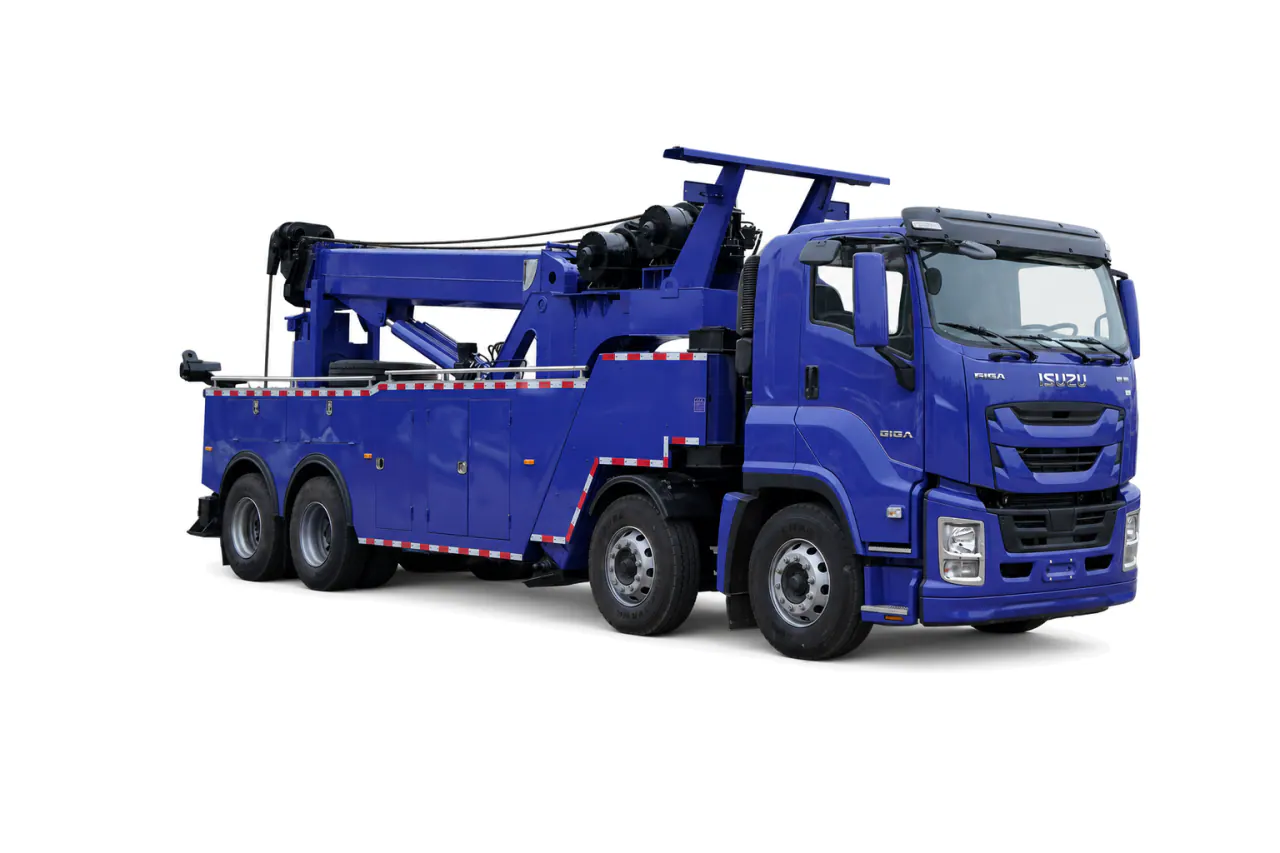

Front three-quarter view of the blue rotator wrecker, showing the stowed recovery boom and four-axle layout (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Rotator Lifting Capacity | 30–50 t |
| Rotation Angle | 360° |
| Boom Extension | 3–10m |
| Winch Capacity | 15–25 t (dual) |
| Outrigger Span | 5–8m |
| Operation Type | Manual / Wireless Remote |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Load path and rotator setup
Typical work
- Heavy-vehicle recovery
- Rollover and obstacle clearance
- Industrial and highway incident response
Configuration details
- Recovery chart and boom geometry
- Outrigger footprint and ground load
- Winch arrangement and rigging
- Travel mass and route restrictions
- Casualty and load case
- Describe the target vehicles, axle loads, recovery sequence and restraints.
- Recovery body and equipment
- State deck length, underlift, boom, winch, crane, rigging and control requirements.
- Setup, route and traffic
- Map setup ground, traffic space, route, braking and deployment footprint.
Acceptance requirements
- Reconcile winch, boom, underlift, deck, restraints and accessories to the approved load-case schedule.
- Witness the agreed functions and safety devices without treating a demonstration as a universal capacity proof.
- Record completed-vehicle mass, axle loads, rated documentation, controls, manuals and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Planning the lift
Can the rotator perform the proposed side lift?
Describe the disabled vehicle and intended load path, including the available setup ground. The permitted load depends on the operating chart, slew sector and support arrangement. Rotation alone does not establish that a side lift is permitted.
How does capacity change as the load moves?
Use the rating for the required radius and load path. The maximum lifting figure is not available throughout the working envelope. A demonstration records one tested setup; the chart still defines the limits at other positions.
Is an underlift included?
Check the selected equipment schedule. Its transport arrangement is relevant only when an underlift is fitted.
What is removed or packed separately for shipping?
Identify equipment removed for shipment and list loose rigging, hooks and accessories. Provide the actual stowed dimensions for the carrier's handling plan.
Specify your Rotator Wrecker
Share the operating duty, destination and equipment requirements.
