Truck-Mounted Aerial Ladder
For building access or evacuation, compare ladder geometry and load with the available setup ground and transport route. A truck-mounted aerial ladder does not necessarily include a fire waterway.
- Working Height
- 16–45 m
- Bucket Capacity
- 400 kg
- Basket Size
- 1200 × 1100 × 500 mm

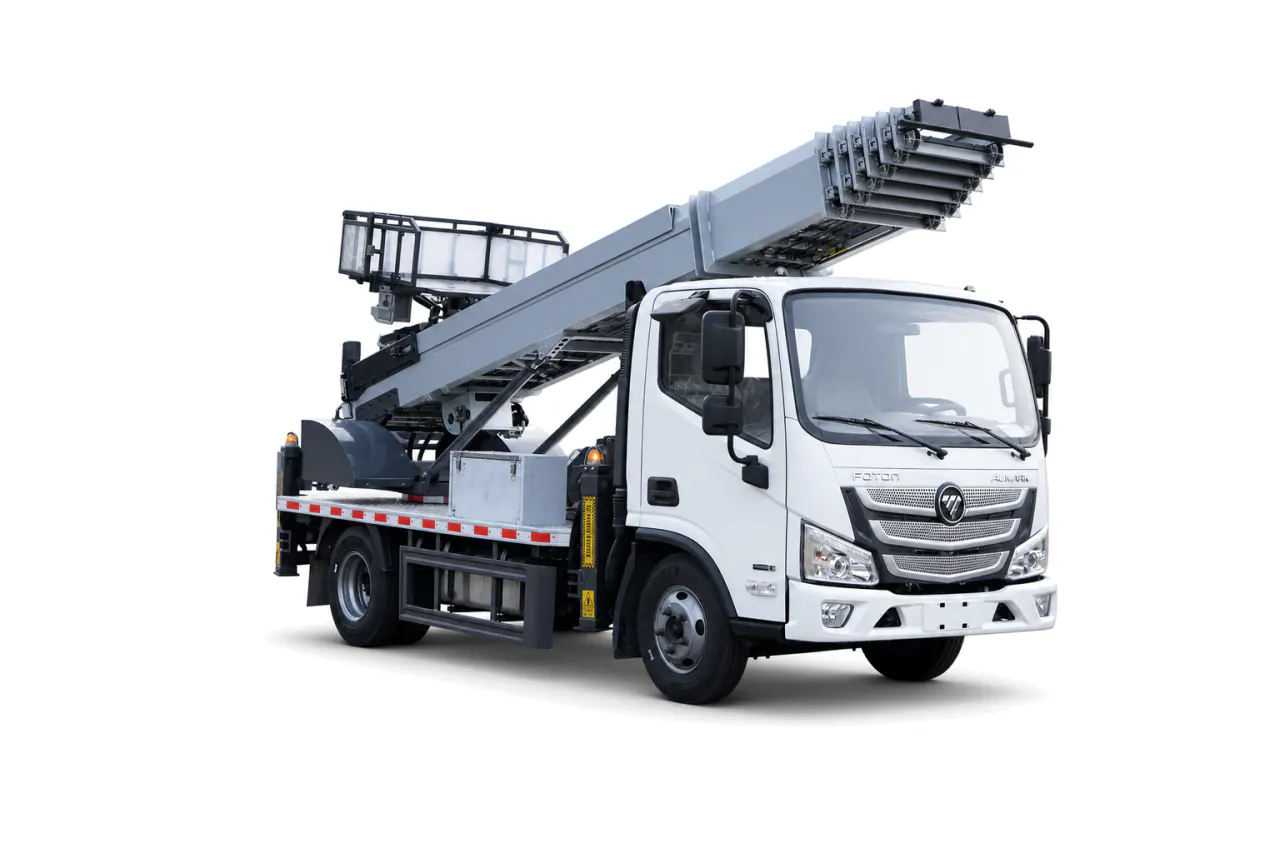

Front three-quarter view of the aerial ladder platform truck, showing nested ladder sections above the cab (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Working Height | 16–45 m |
| Bucket Capacity | 400 kg |
| Basket Size | 1200 × 1100 × 500 mm |
| Basket Extended Size | 2200 × 1600 mm |
| Rotation Angle | ±90° |
| Operation Type | Manual / Wireless Remote |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Ladder access and support
Typical work
- Building access
- Evacuation support
- Elevated maintenance
Configuration details
- Access height and load chart
- Ladder or basket geometry
- Stabilizer footprint and ground reactions
- Transport envelope and destination rules
- Working envelope
- Provide work points, obstacles, load, tools and required movement path.
- Stability and site
- Describe setup footprint, ground, access route and overhead hazards.
- Duty and transport
- State insulation duty, transport envelope, route and destination requirements.
Acceptance requirements
- Reconcile platform geometry, basket load, outriggers, controls, interlocks and emergency lowering to the approved configuration.
- Witness the agreed functional and stability-related checks using the selected model documentation and test method.
- Record completed-vehicle mass, axle loads, load charts, manuals, inspection records and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Ladder use and ratings
Which access or evacuation methods can the ladder support?
The intended method needs its own approval and procedures. Ladder height alone does not establish whether an evacuation method is permitted.
Is a platform or fire waterway included?
Confirm each function in the selected build. Neither a platform nor a fire waterway is implied by the truck-mounted ladder category.
Which load rating applies to ladder access?
Use the documented occupancy limits for the ladder and the separate rating for any fitted platform. Identify the installed configuration and tested functions at handover; a platform-capacity figure does not establish the permitted ladder-access method.
Can the ladder lift as a crane?
Only if equipment documentation supports that proposed function. A ladder load description is not crane-lifting approval.
Which dimensions matter in transit?
Check the full stowed ladder overhang and carrier clearance, including any fitted platform. A generic boom-truck envelope is not enough.
Specify your Truck-Mounted Aerial Ladder
Share the operating duty, destination and equipment requirements.
