Class C Negative-Pressure Isolation Ambulance
For a Class C isolation ambulance, the patient pathway guides the layout and cleaning requirements. Specify pressure control, airflow, filtration and monitoring, then agree the test method and destination approvals.
- Interior Compartment
- Vacuum-formed ABS; sterile negative-pressure cabin
- Stretcher Capacity
- 150–300 kg
- Patient Capacity
- 1–2 Patients

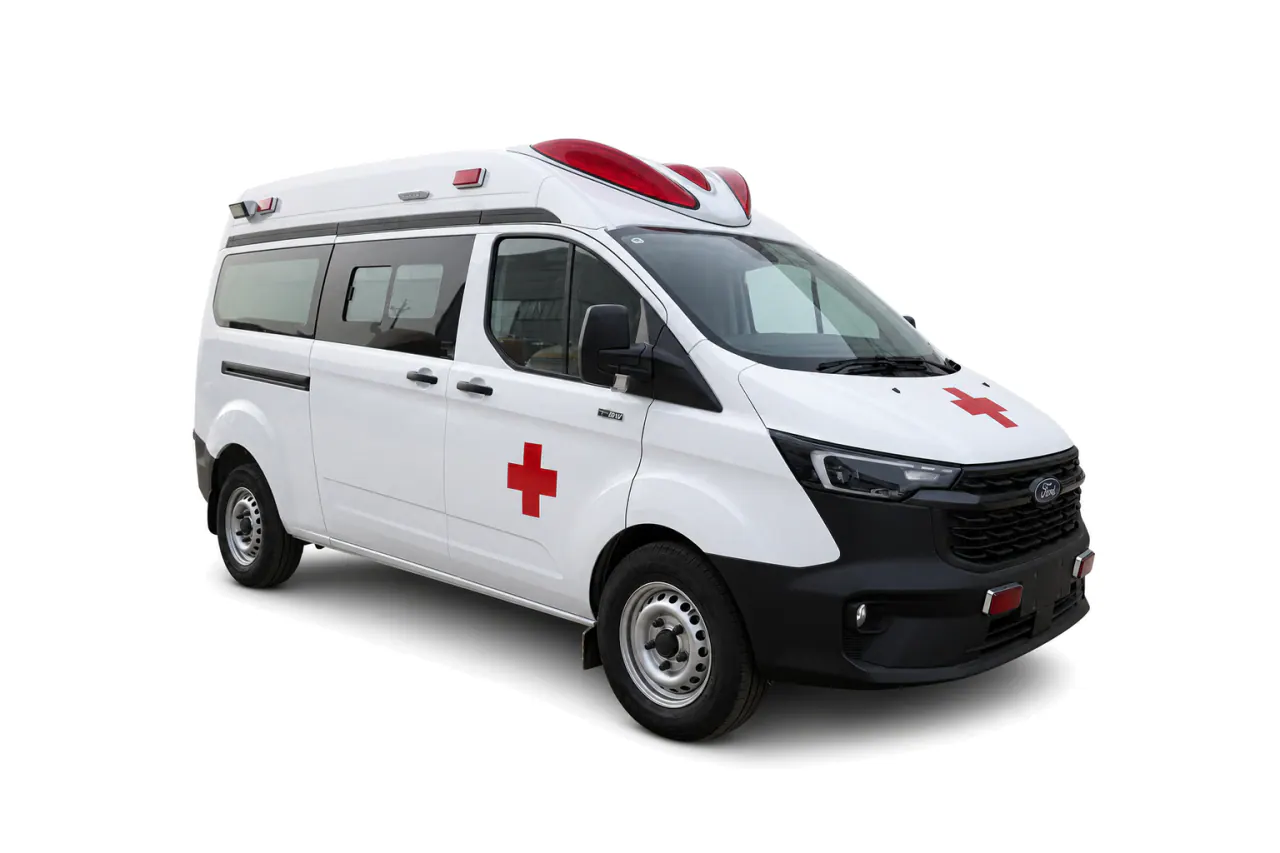

Front three-quarter view of the Class C ambulance, showing the raised roof with red light housings (1 of 7)Technical specifications
| Item | Value |
|---|---|
| Body and layout | |
| Interior Compartment | Vacuum-formed ABS; sterile negative-pressure cabin |
| Patient Capacity | 1–2 Patients |
| Medical Seats | 2–5 Seats |
| Equipment and published ratings | |
| Stretcher Capacity | 150–300 kg |
| Oxygen System | 1–2 Oxygen Cylinders |
| Power Supply | 12V / 24V / 220V |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Isolation compartment and airflow
Typical work
- Isolation-oriented patient movement
- Defined infectious-patient protocols
- Programs with an agreed pressure-test method
Configuration details
- Pressure differential and airflow method
- Filtration and exhaust arrangement
- Alarm and monitoring points
- Cleaning, PPE and destination requirements
- Patient care and crew access
- Describe patient types, procedures, crew roles and stretcher movement.
- Utilities and payload
- List installed devices, power, oxygen, restraint, ventilation and cleaning needs.
- Clinical commissioning
- Identify the responsible clinical operator, hygiene rules, destination requirements and test basis.
Acceptance requirements
- Review cleanable interior materials, sealed joints and the approved cleaning protocol with the clinical operator.
- Verify stretcher and seat rated loads, restraints, access paths and device mountings against the equipment schedule.
- Verify electrical load, circuit protection, oxygen installation, HVAC and any pressure or filtration system with retained records.
- Keep clinical commissioning, destination approval and vehicle acceptance as separate approval steps.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Isolation and clinical use
What does the negative-pressure function provide?
It is an isolation function, not a guarantee against every infection risk. The healthcare operator must define the patient pathway and infection-control requirements, then approve the isolation workflow and equipment for the completed compartment.
Does the vehicle include intensive-care equipment?
Agree the clinical equipment and staffing separately. Negative pressure does not imply an intensive-care package.
How are the ventilation system and filters shipped?
Confirm which filters and accessories are fitted and which are packed separately. Follow the supplier's instructions to protect the ventilation and filtration installation from damage or contamination, and record its dispatch condition. Keep the inventory for arrival checks and commissioning.
Which checks are needed before clinical use?
Agree these with the clinical operator. Dispatch records identify the configuration and conditions tested; they do not establish suitability for every future service situation.
Specify your Class C Negative-Pressure Isolation Ambulance
Share the operating duty, destination and equipment requirements.
