ISUZU KV100 aerial platform for Russia
An ISUZU KV100 order with an 18 m height entry and separate requirements for work-envelope and climate review.
- Destination
- Russia
- Vehicle
- ISUZU KV100 Aerial Work Platform Truck
- Order scope
- ISUZU KV100 aerial-platform configuration
- Recorded stage
- Confirmed order record
Project background
The Russia order specifies an aerial work platform on an ISUZU KV100 chassis family, with an 18 m height entry. A separate media label says 20 m; the order height remains 18 m.
The record does not document the original maintenance task or operating results. The technical documents listed below are needed to define the height and outreach, confirm basket load and establish completed axle ratings.
Record scope
The available record confirms the order and configuration only. It does not confirm manufacturing completion or inspection, nor shipment or delivery.
Recorded configuration
| Destination | Russia |
|---|---|
| Chassis family | ISUZU KV100 |
| Vehicle type | Aerial work platform truck |
| Order height entry | 18 m |
| Height definition | Not recorded in matched order evidence |
| Outreach / basket / stabilizer ratings | Controlled platform documents required |
| Completed mass / axle ratings | Completed-vehicle report required |
| Temperature package | Must be specified for the intended duty |
The public story lists additional platform features but also states that the basket rating and other operating values require controlled documents. Conflicting feature values are not copied as established order data. The separate 20 m media label is excluded from the 18 m order specification.
Planning reach and access
Use these points for a new specification. The original buyer's reasons for choosing this configuration are not documented here.
Resolving the 18 m and 20 m labels
Use the recorded 18 m order value. Before comparing reach charts, confirm the final platform model and height convention in documents for the same project. The separate 20 m media label is not enough to identify that model or change the order specification.
Work points and stability
Assess height and horizontal outreach at the intended basket load. Check the deployed stabilizer dimensions and pad reactions against the available ground, slope and obstacles. Views of the folded boom cannot establish these conditions.
Specifying cold-weather operation
A Russian destination or cabin heater does not establish winter capability. State the minimum operating temperature and the checks required for it. Cold affects starting and batteries; fluids and seals also need consideration within the hydraulic system specification.
Suitable work
Road-going access to defined elevated positions, with the chassis and platform reviewed as one completed vehicle.
Reasons to revise the specification
Greater reach or basket load, insulation, demanding winter duty or restricted setup space require a revised technical package.
Before approving a new specification
| Item | What it affects | Information to provide | Record to review |
|---|---|---|---|
| Work envelope | Reach at the required basket load | Height, setbacks, obstacles and work points | Load-dependent reach chart and height definition |
| Basket | Occupants, tools and materials | Total working load and access requirements | Controlled basket rating and occupant limit |
| Stabilizers | Setup space and ground reactions | Available footprint, ground conditions and slope | Pad reactions, setup limits and interlock documentation |
| Completed vehicle | Mass, axle loads and transport access | Route dimensions and installed equipment | Completed drawing and mass / axle-load report |
| Climate and support | Temperature suitability and recovery provisions | Temperature range, service and emergency-lowering needs | Agreed climate package, manuals and inspection plan |
Vehicle layout and supporting views

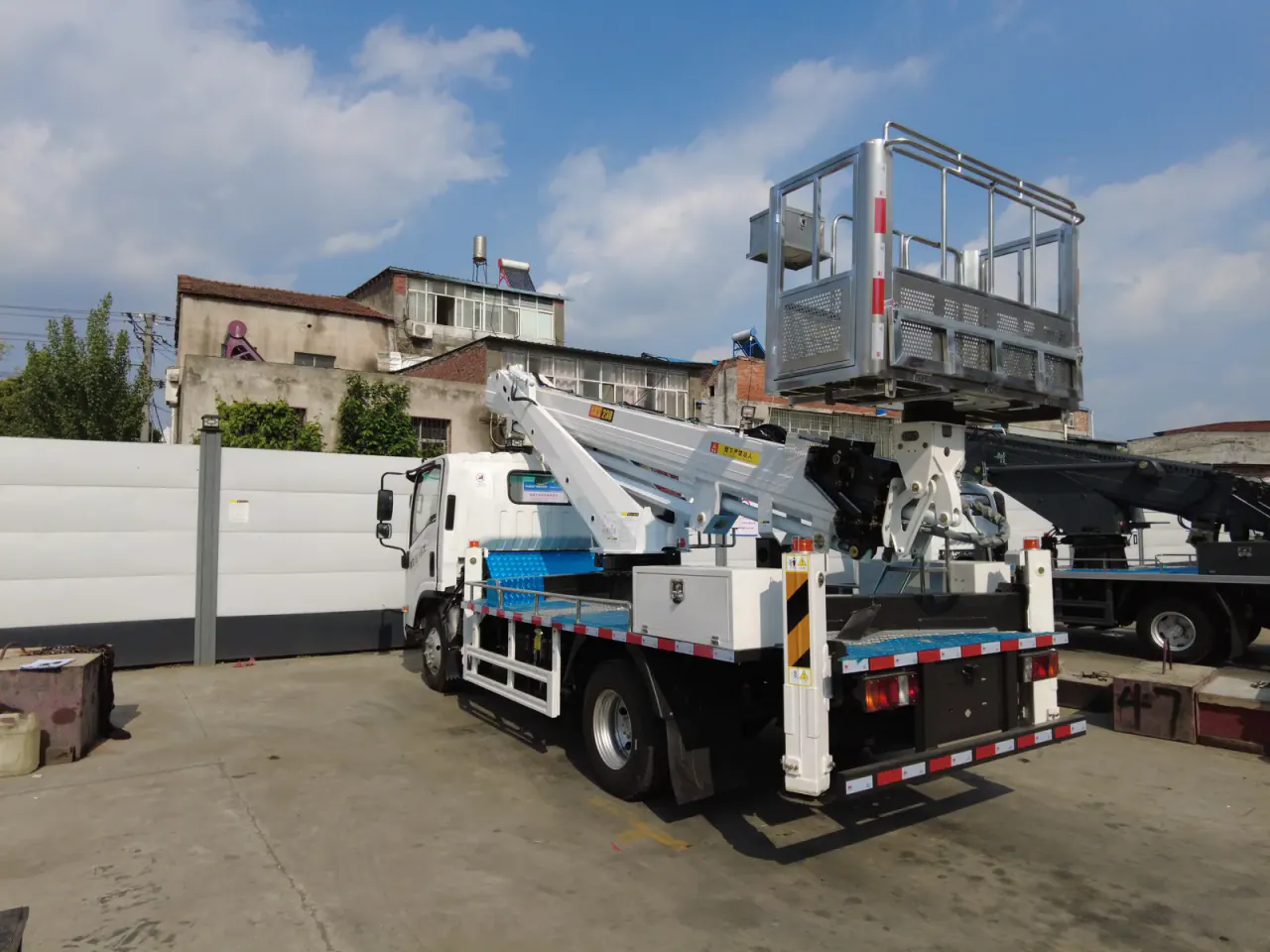

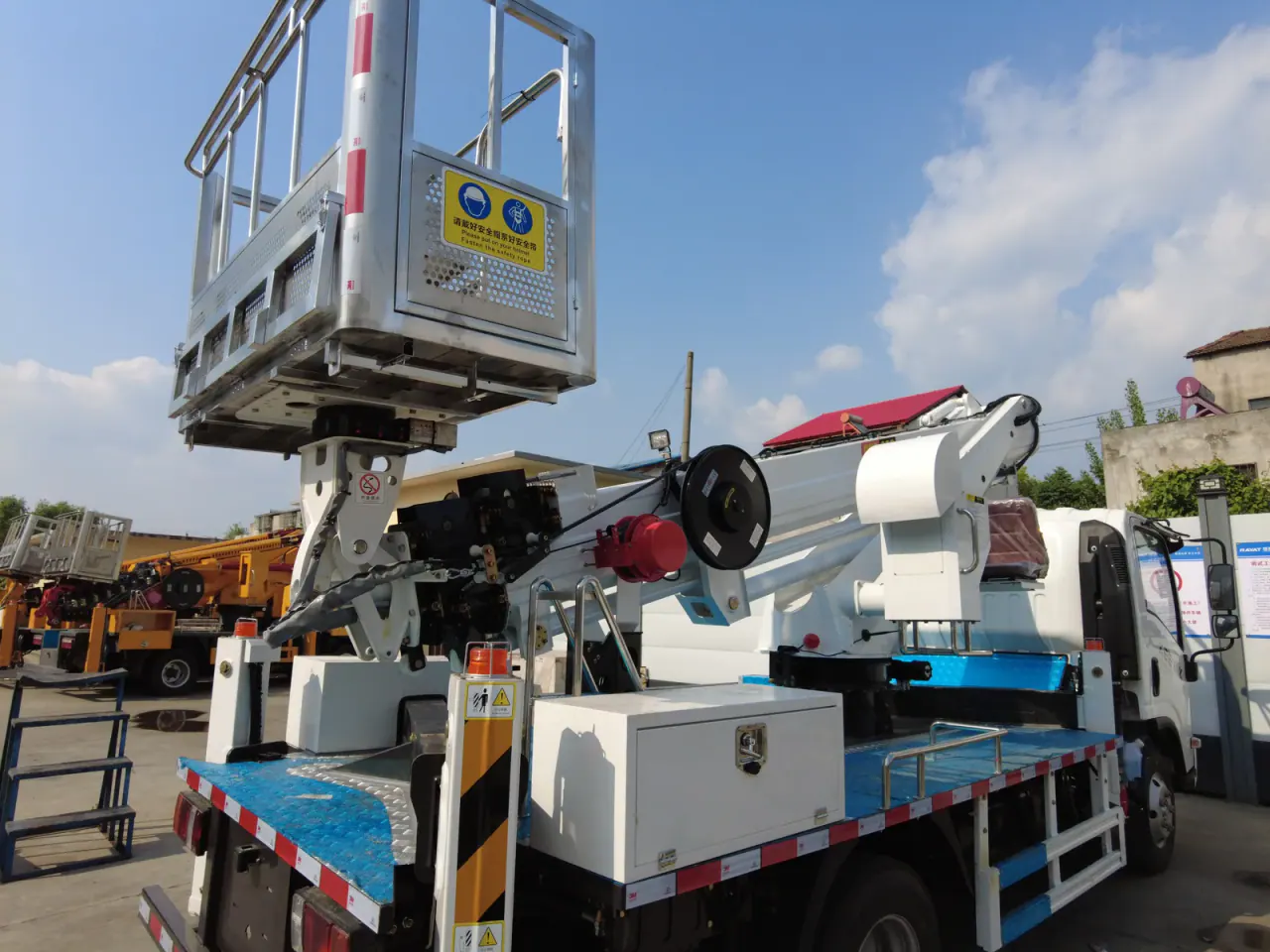

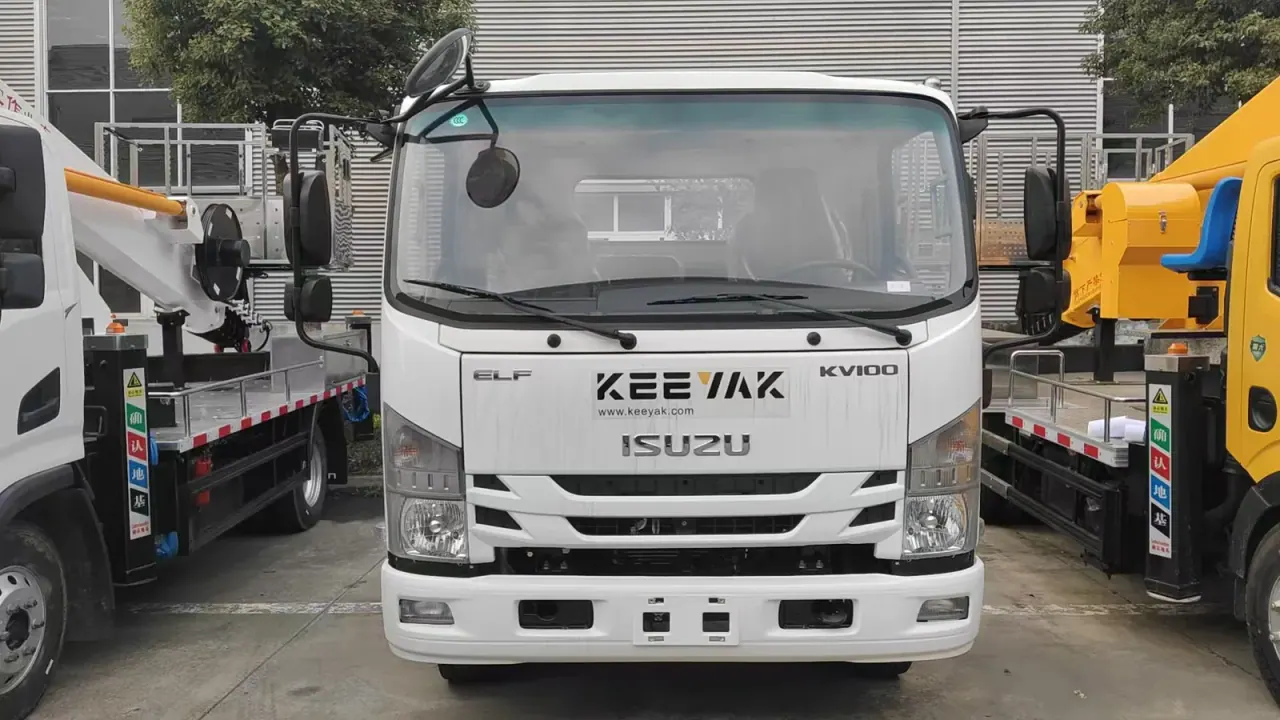

ISUZU configuration views show the basket and stabilizers, not a Russian worksite or evidence of cold-weather performance.
| Material | What it supports | Public access |
|---|---|---|
| KEEYAK Vehicle Story | An ISUZU KV100 order with an 18 m height entry and separate requirements for work-envelope and climate review. The public article is a first-party account; it is not an original commercial document. | Read article transcript |
| Original vehicle photographs | Visible body layout and equipment. They do not independently prove destination, shipment or acceptance. | View photographs below |
| Underlying order / transport records | The available record confirms the order and configuration only. It does not confirm manufacturing completion or inspection, nor shipment or delivery. No underlying commercial document is published on this page. | Read scope and source status |
Prepare a new order
We need to check component availability and the equipment package again for a new order. The new quotation and signed specification determine the supply. This project record is not a standing offer or approval for use at the destination.
Understanding the height entry
- Why does this case use 18 m rather than the media’s 20 m label?
- The retained order uses an 18 m value. The separate media label does not establish a different order specification. A matching platform identity, height definition and working-envelope chart are needed before making a performance claim.
