Class A Patient Transport Ambulance
For stable patient transfers, start with stretcher access and seating. Plan oxygen, power and cleaning around the transfer workflow, and confirm the destination approval requirements for the Class A vehicle.
- Interior Compartment
- Plywood
- Stretcher Capacity
- 150–300 kg
- Patient Capacity
- 1–2 Patients

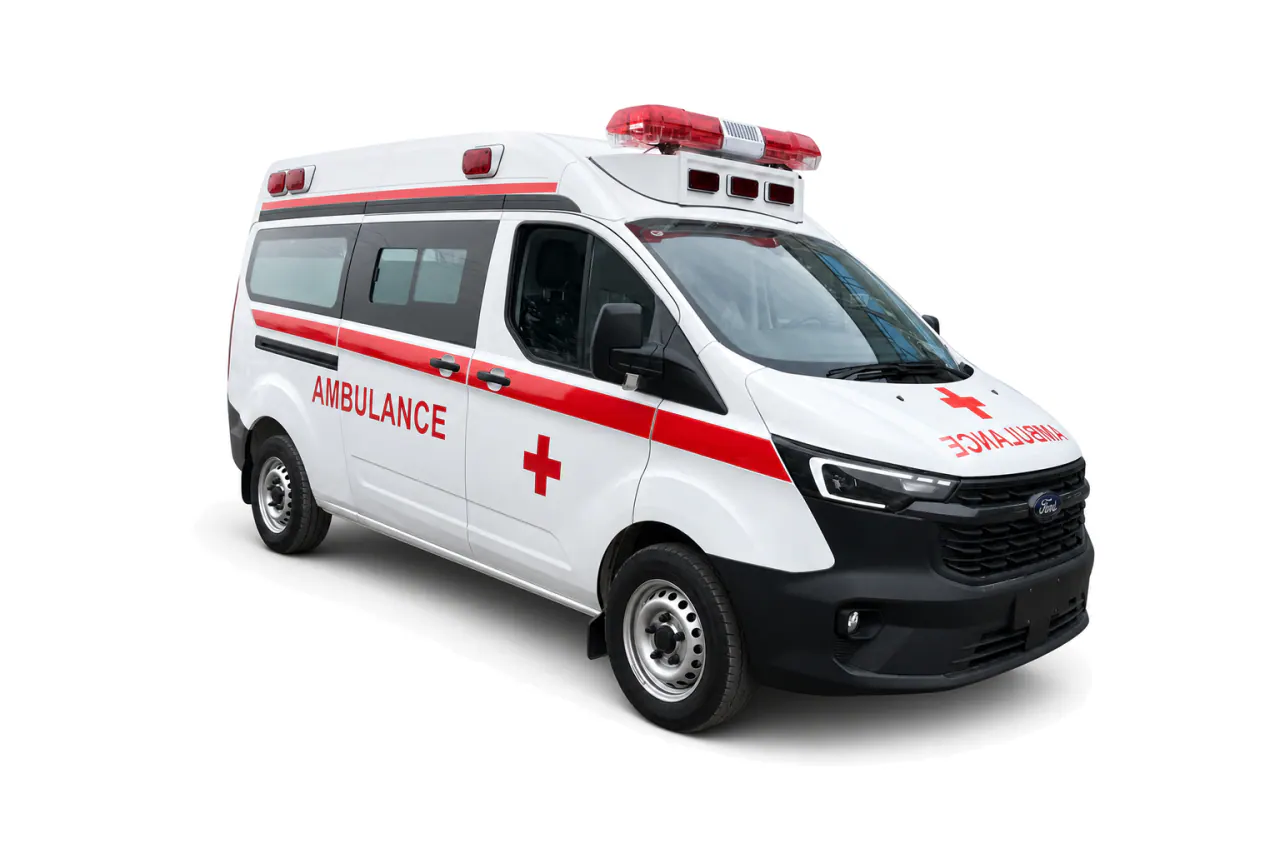

Front three-quarter view of the Class A ambulance, showing the red roof lightbar and side ambulance markings (1 of 7)Technical specifications
| Item | Value |
|---|---|
| Body and layout | |
| Interior Compartment | Plywood |
| Patient Capacity | 1–2 Patients |
| Medical Seats | 2–5 Seats |
| Equipment and published ratings | |
| Stretcher Capacity | 150–300 kg |
| Oxygen System | 1–2 Oxygen Cylinders |
| Power Supply | 12V / 24V / 220V |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Patient transfer layout
Typical work
- Scheduled patient transfer
- Non-critical medical transport
- Defined equipment programs
Configuration details
- Patient pathway and crew role
- Stretcher and seating layout
- Oxygen, HVAC and electrical demand
- Cleaning and destination approval
- Patient care and crew access
- Describe patient types, procedures, crew roles and stretcher movement.
- Utilities and payload
- List installed devices, power, oxygen, restraint, ventilation and cleaning needs.
- Clinical commissioning
- Identify the responsible clinical operator, hygiene rules, destination requirements and test basis.
Acceptance requirements
- Review cleanable interior materials, sealed joints and the approved cleaning protocol with the clinical operator.
- Verify stretcher and seat rated loads, restraints, access paths and device mountings against the equipment schedule.
- Verify electrical load, circuit protection, oxygen installation, HVAC and any pressure or filtration system with retained records.
- Keep clinical commissioning, destination approval and vehicle acceptance as separate approval steps.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Planning a transport ambulance
Is this layout intended for emergency treatment?
The clinical operator must confirm the service and equipment required. A patient-transport layout alone does not establish suitability for emergency treatment, and vehicle acceptance does not authorize treatment procedures.
How many patients and attendants can travel?
Agree the patient places and attendant positions in the layout. A stretcher load rating describes its supported load, not the number of patients the vehicle can carry.
Can I enquire before the equipment list is complete?
Yes. Describe the transfer service and patient access, including attendant positions. Leave unspecified equipment for the clinical operator to review. The quotation then needs to distinguish fitted devices from separately packed accessories and exclusions.
Are oxygen and batteries included in the shipment?
Confirm whether they are supplied and agree their transport arrangements with the carrier. The inventory must describe the actual shipment contents.
Specify your Class A Patient Transport Ambulance
Share the operating duty, destination and equipment requirements.
