HOWO aerial platform for Ethiopia
A HOWO aerial-platform order with a recorded 20 m height entry.
- Destination
- Ethiopia
- Vehicle
- HOWO Aerial Work Platform Truck
- Order scope
- HOWO aerial-platform configuration
- Recorded stage
- Confirmed order record
Project background
The order identifies a HOWO aerial platform and its stated height. It does not document the original buyer’s work locations or exact task. Street-light, communications and maintenance work are possible uses of this vehicle type, but the record does not report those project outcomes.
Record scope
The available record confirms the order and configuration only. It does not confirm manufacturing completion or inspection, nor shipment or delivery.
Recorded configuration
| Destination | Ethiopia |
|---|---|
| Chassis brand | HOWO |
| Vehicle type | Aerial work platform truck |
| Order height entry | 20 m; define the measurement in the signed specification |
| Full reach envelope | Controlled platform chart required |
| Basket load / stabilizer reactions | Not established by the matched order evidence |
| Exact chassis / completed mass | Require project-specific technical documents |
Additional platform-feature values in the public story are excluded from the order specification: the matched evidence does not establish basket rating or stabilizer reactions. Media labels are not chassis parameters.
Planning reach and access
Use these points for a new specification. The original buyer's reasons for choosing this configuration are not documented here.
Beyond the 20 m height entry
The 20 m entry needs a defined measurement. To assess a work point, compare its horizontal setback and obstacles with the platform reach at the intended basket load. Height alone does not describe that working envelope.
Basket load and ground support
Count people, tools and materials in the basket load. The controlled platform documents must give the stabilizer footprint and individual pad reactions. They also need to specify ground support, with permitted slope and wind conditions. Photographs cannot establish these operating values.
Chassis and support
The platform and subframe change the finished mass and axle distribution. For a similar project, identify the exact chassis and platform and obtain completed dimensions. Agree emergency-lowering arrangements and the required manuals, with clear service responsibilities.
Suitable work
Elevated access for workers and tools, assessed against defined work points and available setup space.
Reasons to revise the specification
Greater outreach, higher basket load, restricted stabilizer space, rough ground or electrical insulation needs can require another platform or chassis.
Before approving a new specification
| Item | What it affects | Information to provide | Record to review |
|---|---|---|---|
| Work envelope | Reach at the required basket load | Height, setbacks, obstacles and work points | Load-dependent reach chart and height definition |
| Basket | Occupants, tools and materials | Total working load and access requirements | Controlled basket rating and occupant limit |
| Stabilizers | Setup space and ground reactions | Available footprint, ground conditions and slope | Pad reactions, setup limits and interlock documentation |
| Completed vehicle | Mass, axle loads and transport access | Route dimensions and installed equipment | Completed drawing and mass / axle-load report |
| Climate and support | Temperature suitability and recovery provisions | Temperature range, service and emergency-lowering needs | Agreed climate package, manuals and inspection plan |

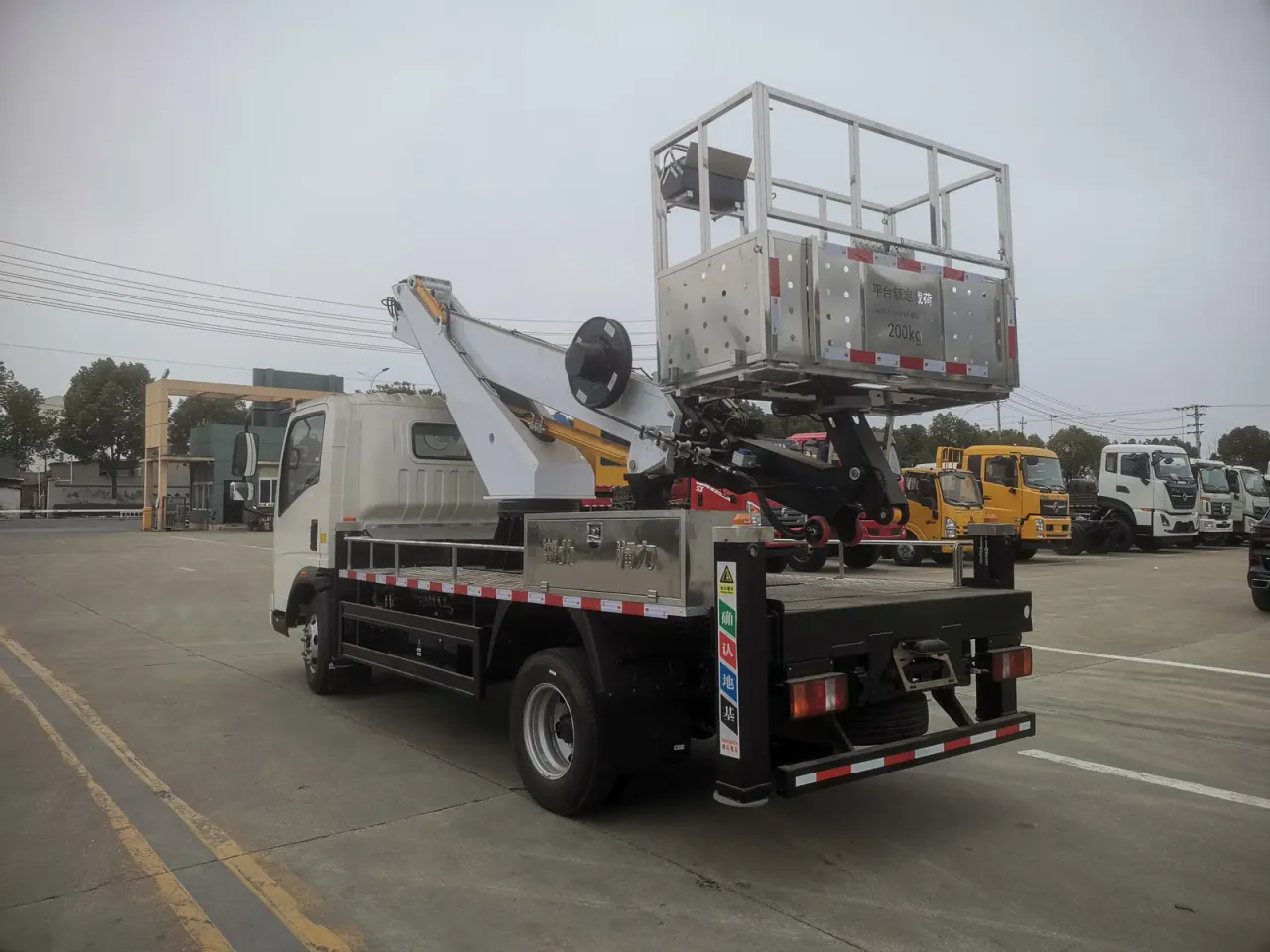

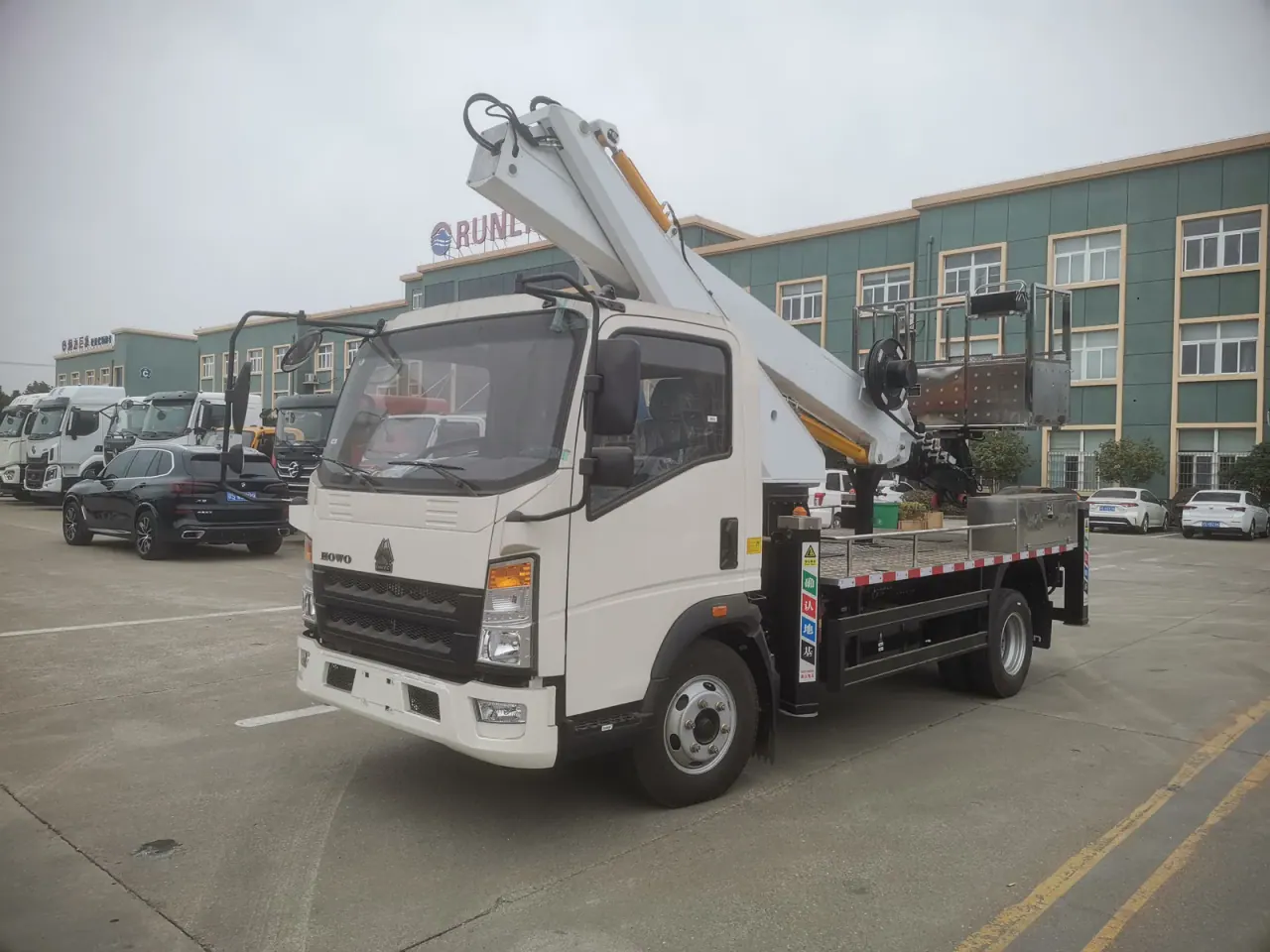

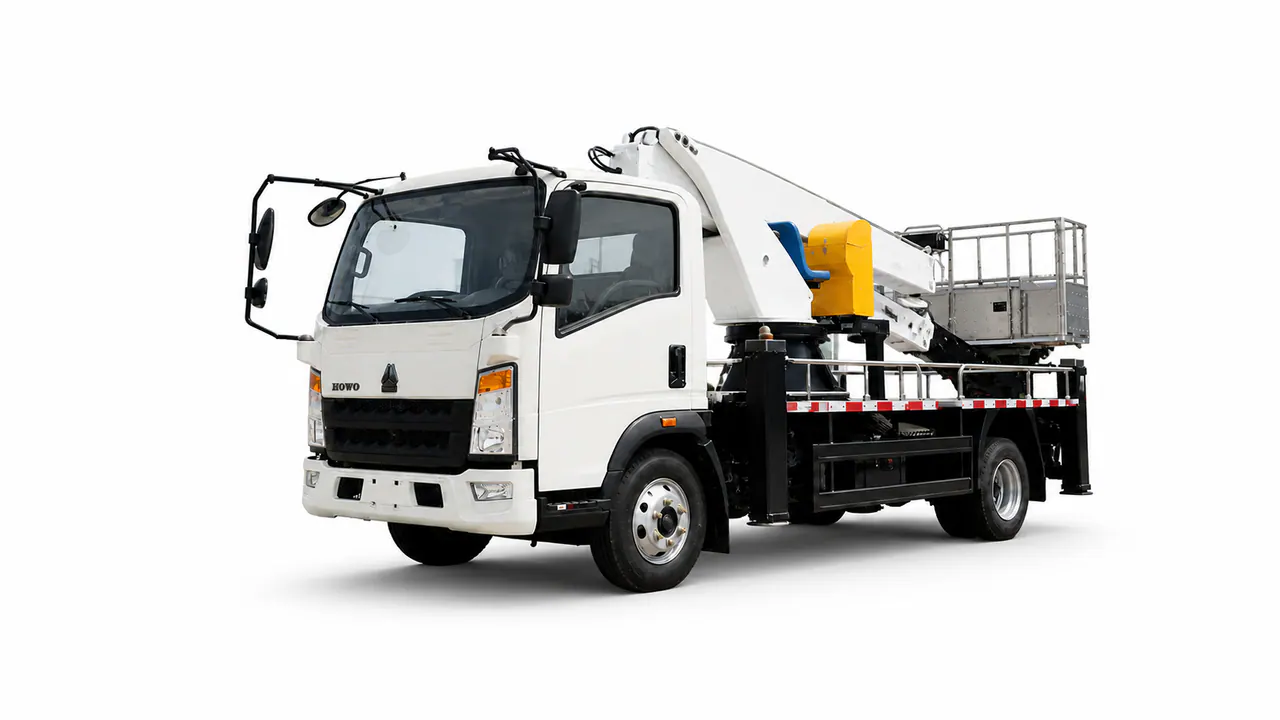

Vehicle layout and supporting views
HOWO views show the boom, basket and stabilizer arrangement. They do not establish an Ethiopian worksite or the platform’s operating ratings.
| Material | What it supports | Public access |
|---|---|---|
| KEEYAK Vehicle Story | A HOWO aerial-platform order with a recorded 20 m height entry. The public article is a first-party account; it is not an original commercial document. | Read article transcript |
| Original vehicle photographs | Visible body layout and equipment. They do not independently prove destination, shipment or acceptance. | View photographs below |
| Underlying order / transport records | The available record confirms the order and configuration only. It does not confirm manufacturing completion or inspection, nor shipment or delivery. No underlying commercial document is published on this page. | Read scope and source status |
Prepare a new order
We need to check component availability and the equipment package again for a new order. The new quotation and signed specification determine the supply. This project record is not a standing offer or approval for use at the destination.
Understanding the height entry
- Does the 20 m entry define the complete working range?
- No. It is the recorded height entry. The signed specification must define the measurement and include the load-dependent reach chart, basket rating, stabilizer conditions and operating limits.
