Aerial Ladder Fire Truck
Compare reach at the required load with building access and stabilizer reactions. Specify emergency functions and the required pump, waterway and monitor duty for the aerial ladder fire truck.
- Maximum Working Height
- 20–50 m
- Maximum Working Radius
- 10–30 m
- Platform Capacity
- 200 / 300 / 400 kg

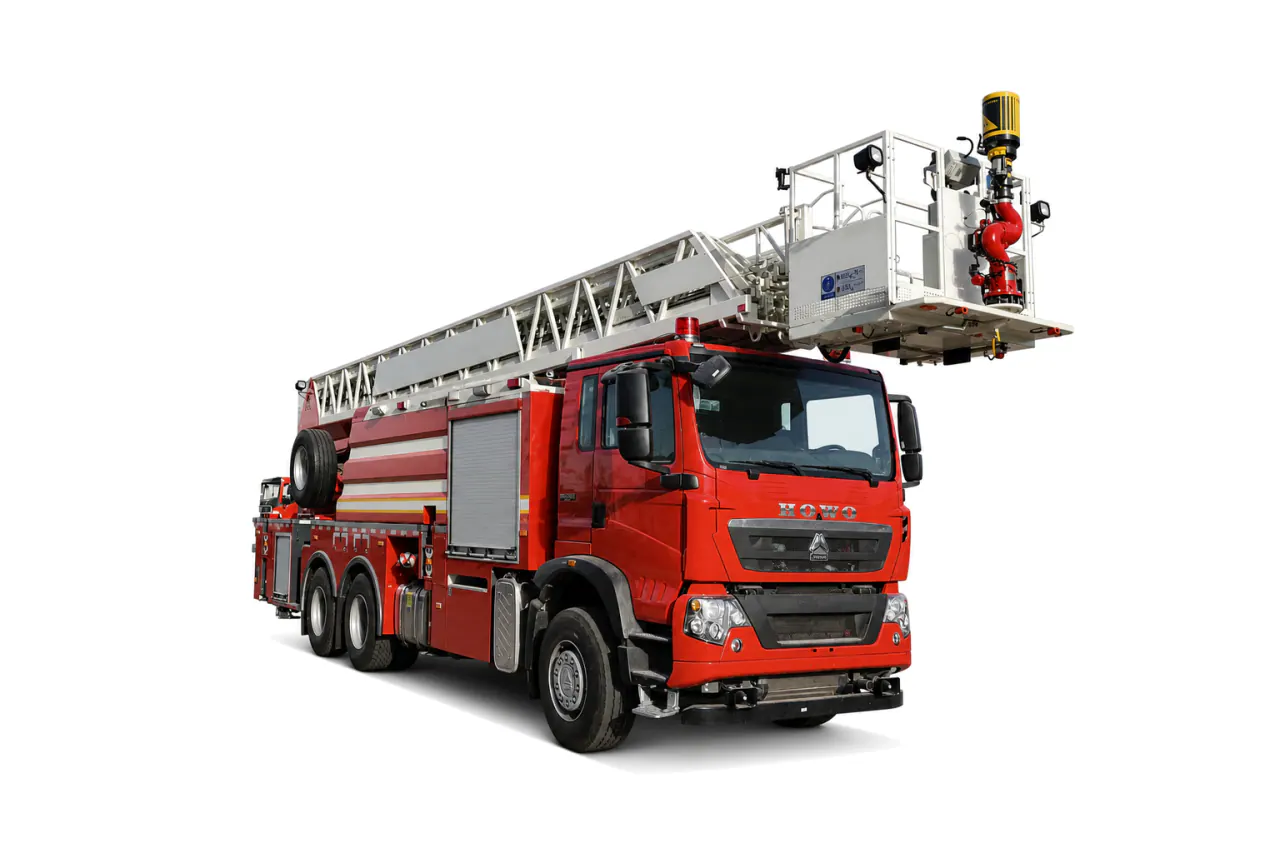

Front three-quarter view of the aerial ladder fire truck, showing the forward platform and nested ladder above the cab (1 of 4)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Maximum Working Height | 20–50 m |
| Maximum Working Radius | 10–30 m |
| Platform Capacity | 200 / 300 / 400 kg |
| Fire Monitor Flow Rate | 40–100 L/s |
| Fire Monitor Range | 60–90 m |
| Rotation Angle | 360° |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Ladder access and firefighting equipment
Typical work
- Upper-floor access
- Elevated rescue support
- High-level monitor operation
Configuration details
- Working chart and basket load
- Stabilizer footprint and ground reactions
- Fire pump, waterway and monitor duty
- Building access and operating limits
- Agent and discharge duty
- Name the hazard, agent, flow, pressure, duration, inlet and application point.
- Body, crew and equipment
- Provide crew, equipment, refill, storage and deployment sequence.
- Route and acceptance
- State route, water source, operating footprint and destination fire-apparatus requirements.
Acceptance requirements
- Reconcile the approved tank, pump, monitor, piping and equipment schedule to the finished vehicle.
- Witness the agreed pump and monitor duty points with identified instruments and retained results.
- Record completed-vehicle mass, axle loads, labels, access, controls, manuals and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Reach, equipment and test records
Will the ladder reach the rescue position?
Compare the building access position with the approved working envelope at the required load. Maximum height and maximum radius may not be available together. The brigade's rescue method and crew requirements determine the equipment and acceptance scope for the destination.
Does the ladder include a waterway or platform?
Specify the waterway, monitor or platform needed in the selected build. The ladder description alone does not include those functions.
Do pump tests cover the ladder too?
Pump tests cover the water system. Ladder access needs separate records for the load envelope and approved access method. Match certificates to each ordered function; a general pump or platform certificate does not verify the complete ladder appliance.
What does the carrier need to know?
Provide complete stowed dimensions and identify removable firefighting equipment. Obtain the supplier's preparation instructions for the ladder and any fitted waterway.
