Pickup-Mounted Aerial Work Platform
A pickup-mounted platform suits lighter utility and maintenance work. Check the payload left after installation, working envelope and stabilizer setup, allowing room for tools and access along the route.
- Working Height
- 9–18 m
- Bucket Capacity
- 200 kg
- Boom Type
- Articulating Boom

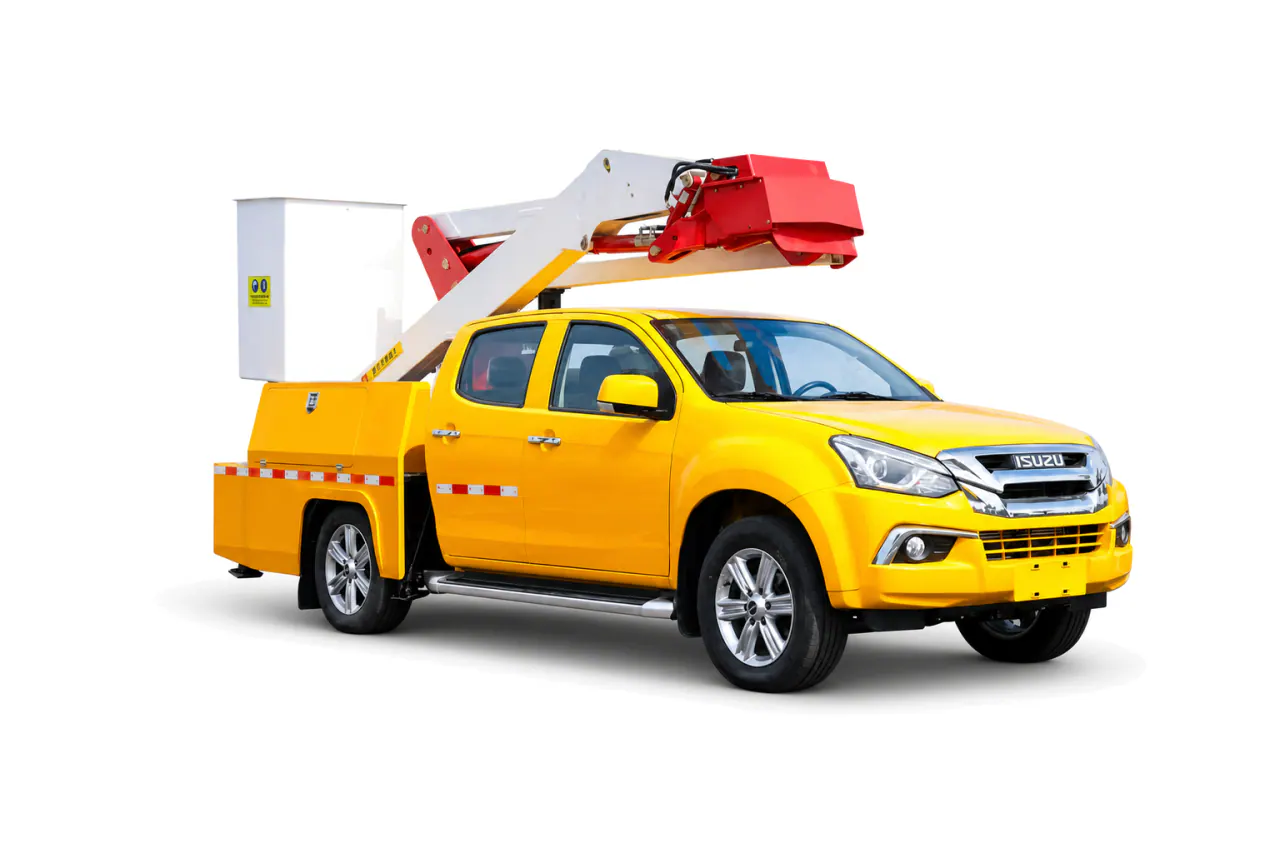

Front three-quarter view of the yellow pickup aerial platform, with folded red-and-white boom above the double cab (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Chassis | |
| Driving Axle Type | 4 × 2 / 4 × 4 |
| Equipment and published ratings | |
| Working Height | 9–18 m |
| Bucket Capacity | 200 kg |
| Boom Type | Articulating Boom |
| Rotation Angle | 360° |
| Operation Type | Manual / Wireless Remote |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Platform installation on the pickup
Typical work
- Streetlight and sign work
- Tree care and facilities maintenance
- Small-crew utility access
Configuration details
- Chassis payload after fitment
- Working height and outreach
- Stabilizer pads and setup surface
- Tool storage and warning systems
- Working envelope
- Provide work points, obstacles, load, tools and required movement path.
- Stability and site
- Describe setup footprint, ground, access route and overhead hazards.
- Duty and transport
- State insulation duty, transport envelope, route and destination requirements.
Acceptance requirements
- Reconcile platform geometry, basket load, outriggers, controls, interlocks and emergency lowering to the approved configuration.
- Witness the agreed functional and stability-related checks using the selected model documentation and test method.
- Record completed-vehicle mass, axle loads, load charts, manuals, inspection records and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Worksite access and payload
Will the pickup platform fit the worksite?
Describe the actual access positions and available setup space at each service stop. The area occupied on the road differs from the space needed by the deployed supports and platform; a height request alone does not explain that access.
Which payload figure applies after installation?
Use the remaining payload and completed axle loads after the boom and support equipment are fitted. The original pickup figures do not describe the finished platform.
Who confirms local approval requirements?
The importer needs to confirm destination registration, equipment inspection and operator requirements before approving the specification.
What information is needed for shipment and handover?
Provide the completed height and approved handling points because the fitted platform changes the vehicle envelope. The inventory should identify the mounted platform and any loose tools or accessories included in the order.
Specify your Pickup-Mounted Aerial Work Platform
Share the operating duty, destination and equipment requirements.
