Foam Fire Truck
Match the foam concentrate to the liquid-fuel or industrial hazard. Specify proportioning, pump and monitor duty alongside the water supply and cleaning arrangements after use.
- Water Tank Capacity
- 3000–15000 L
- Foam Tank Capacity
- 1000–5000 L
- Fire Pump Flow Rate
- 30–100 L/s

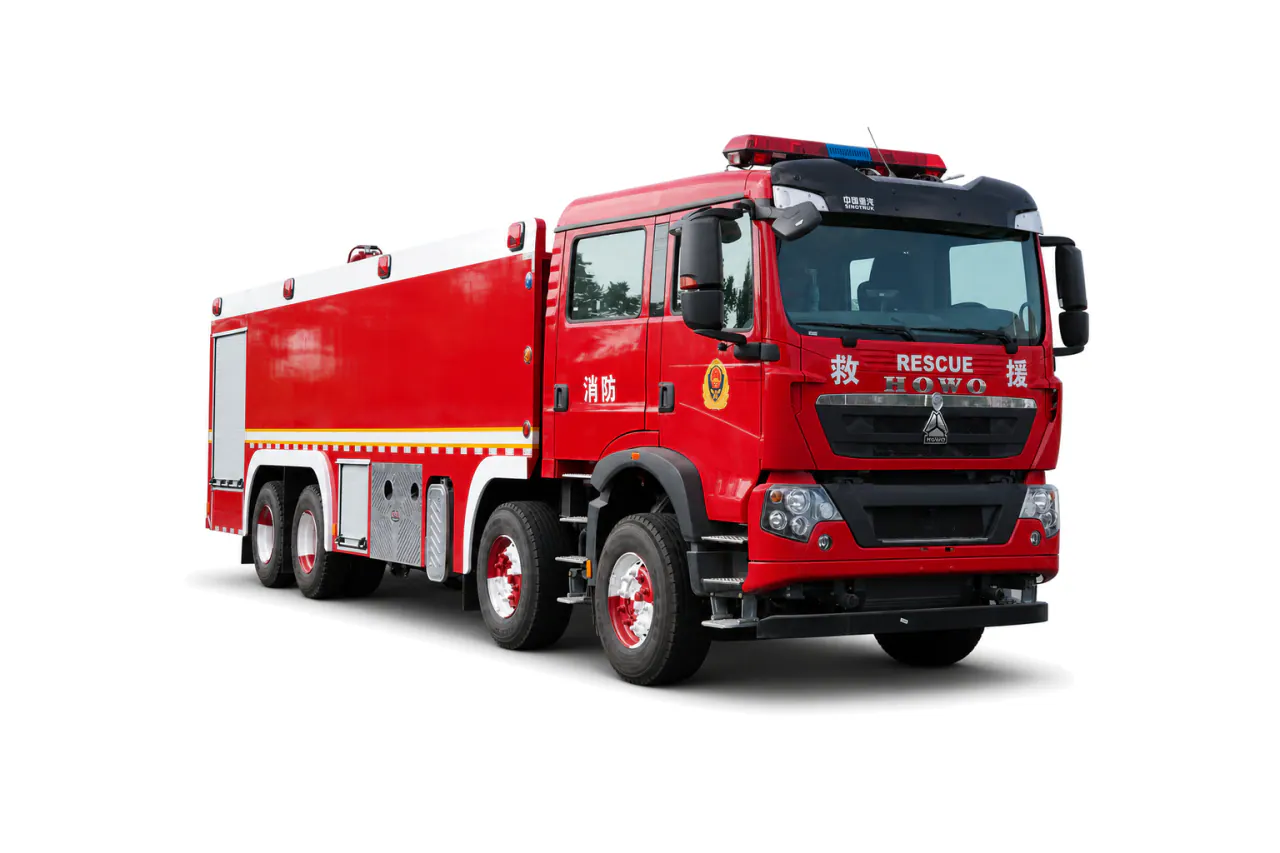

Front three-quarter view of the foam fire truck, showing the crew cab, four-axle layout and lower equipment compartments (1 of 6)Technical specifications
| Item | Value |
|---|---|
| Equipment and published ratings | |
| Water Tank Capacity | 3000–15000 L |
| Foam Tank Capacity | 1000–5000 L |
| Fire Pump Flow Rate | 30–100 L/s |
| Foam Monitor Flow Rate | 20–80 L/s |
| Foam Monitor Range | 35–70 m |
| Foam Mixing Ratio | 3% / 6% |
Published configuration range · Data sheet v1.1 · Source checked · Supporting documents
Foam supply and discharge
Typical work
- Foam-agent response
- Fuel-storage incident support
- Water and foam systems sized together
Configuration details
- Hazard and agent compatibility
- Concentrate quantity and proportioning
- Pump, monitor and application point
- Clean-down and acceptance method
- Agent and discharge duty
- Name the hazard, agent, flow, pressure, duration, inlet and application point.
- Body, crew and equipment
- Provide crew, equipment, refill, storage and deployment sequence.
- Route and acceptance
- State route, water source, operating footprint and destination fire-apparatus requirements.
Acceptance requirements
- Reconcile the approved tank, pump, monitor, piping and equipment schedule to the finished vehicle.
- Witness the agreed pump and monitor duty points with identified instruments and retained results.
- Record completed-vehicle mass, axle loads, labels, access, controls, manuals and exceptions.
Build and inspection
Final dimensions, installed equipment, route suitability and acceptance records are confirmed for the selected project.
Choosing and testing the foam system
How do I specify the foam system?
The fire-service authority defines the hazard and the agent it needs. Tank capacity describes storage. Foam performance also depends on the concentrate and proportioning system selected for the hazard. The importer needs to check destination requirements for that agent and vehicle.
Can this truck serve an airport?
Airport service needs a separate specification review. An industrial foam configuration does not, by itself, establish aircraft rescue and firefighting approval.
What should the foam test demonstrate?
The test record needs to identify the concentrate and proportioning setup used for the agreed duty. A water-only test cannot verify the complete foam duty.
Will the concentrate travel with the truck?
The quotation needs to say whether concentrate is included, supplied separately or excluded. If it is shipped, agree its condition and declaration with the carrier. Obtain the supplier's tank and circuit preparation instructions, and list loose hoses and equipment separately.
Specify your Foam Fire Truck
Share the operating duty, destination and equipment requirements.
