ISUZU wrecker for Mexico
One completed wrecker and two body packages, recorded for shipment to Manzanillo in February 2026.
- Destination
- Mexico · Port of Manzanillo
- Vehicle
- ISUZU SCS5082TQZQL6 Wrecker Truck
- Shipment scope
- One truck + two body packages
- Recorded shipment
- February 2026
Project background
The carrier record lists one completed ISUZU SCS5082TQZQL6 wrecker and two separate wrecker-body packages on the route from Wuhan to Manzanillo. Commercial and export records support those shipment quantities.
The vehicle record lists a 5-ton platform and a separate 5-ton winch. The platform measures 5.8 × 2.2 m, with 4 mm chequer plate specified. The scope also includes rear support equipment, auxiliary trolleys and straps.
Record scope
The available record covers export and shipment. It does not document arrival, local registration or commissioning.
Recorded configuration
| Completed model | SCS5082TQZQL6 |
|---|---|
| Wheelbase | 3,815 mm |
| Engine | 4KH1N6MD |
| Power | 140 hp / 103 kW |
| Transmission | 5 forward + 1 reverse |
| Platform entry | 5 t; 5.8 × 2.2 m; 4 mm chequer plate |
| Winch entry | 5 t |
| Recovery equipment | Rear support arm, auxiliary trolleys, straps and listed accessories |
Specifying a similar recovery vehicle
Use these points for a new specification. The original buyer's reasons for choosing this configuration are not documented here.
One truck, two body packages
The completed truck and body packages need separate specifications. Give each package its own installation requirements and packing list, and state explicitly whether chassis supply is included.
Platform and chassis
Check the 5.8 m platform and 3,815 mm wheelbase against the dimensions of the vehicles to be carried. Review overhang and completed axle loads as part of the same check. Plate thickness alone does not establish structural capacity.
Accessories in the supply
The winch, rear support arm and platform each need a documented rating. A general accessories allowance is not enough to identify the supplied items: list trolley and strap quantities, then specify any attachments and their storage positions.
Suitable work
Mixed procurement of a completed truck and body-only packages, with chassis supply, installation and documentation responsibilities assigned for each item.
Reasons to revise the specification
Heavy commercial vehicles, longer decks or different rear support geometry may require another chassis and recovery system.
Before approving a new specification
| Item | What it affects | Information to provide | Record to review |
|---|---|---|---|
| Platform | Supported vehicle and load distribution | Vehicle mass, wheelbase and clearance | Controlled deck drawing and rating |
| Chassis | Axle loading and route access | Operating route, turning space and target load | Completed dimensions and axle-load calculation |
| Winch / tow equipment | Pull or supported load under stated conditions | Required function, geometry and working positions | Component specifications and operating limits |
| Equipment | Fit, restraint and electrical interfaces | Attachments, work lights and accessory quantities | Signed installed-equipment list |
| Destination | Import and road-use acceptance | Importer requirements and destination checklist | Document and registration responsibility list |

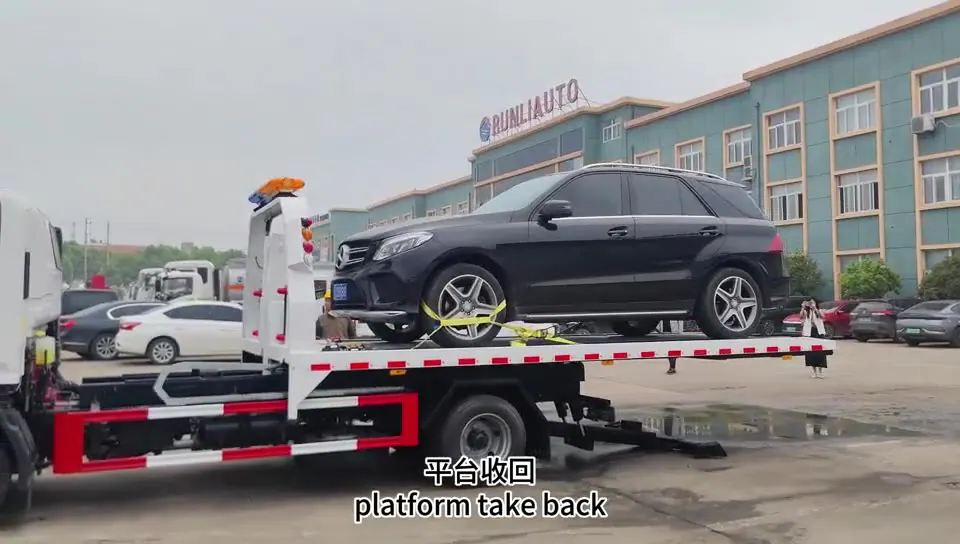

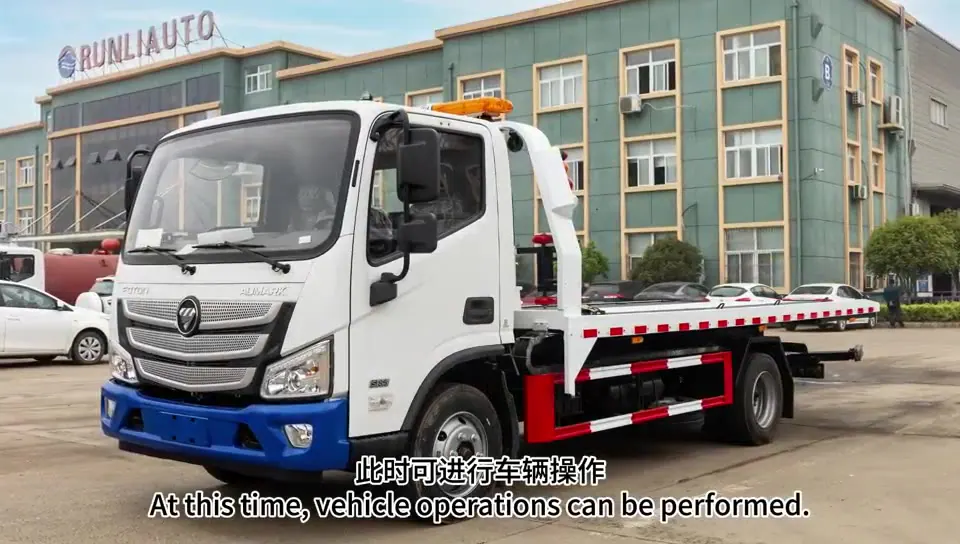

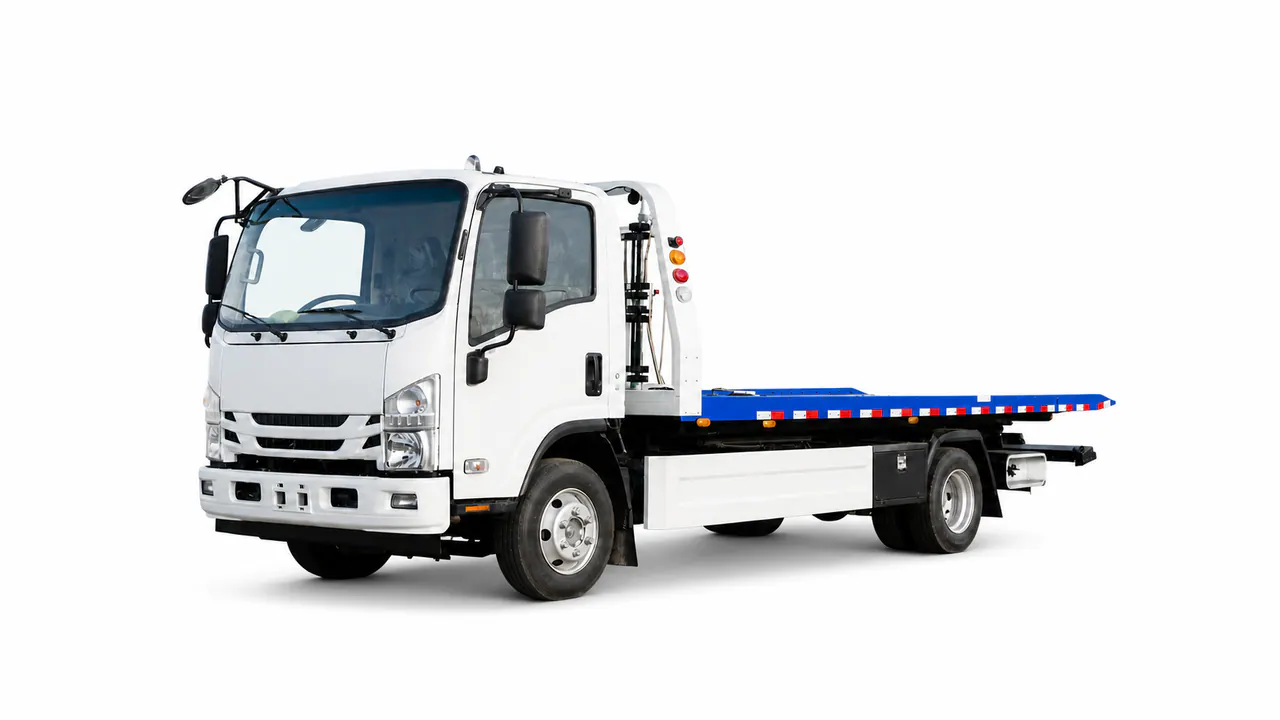

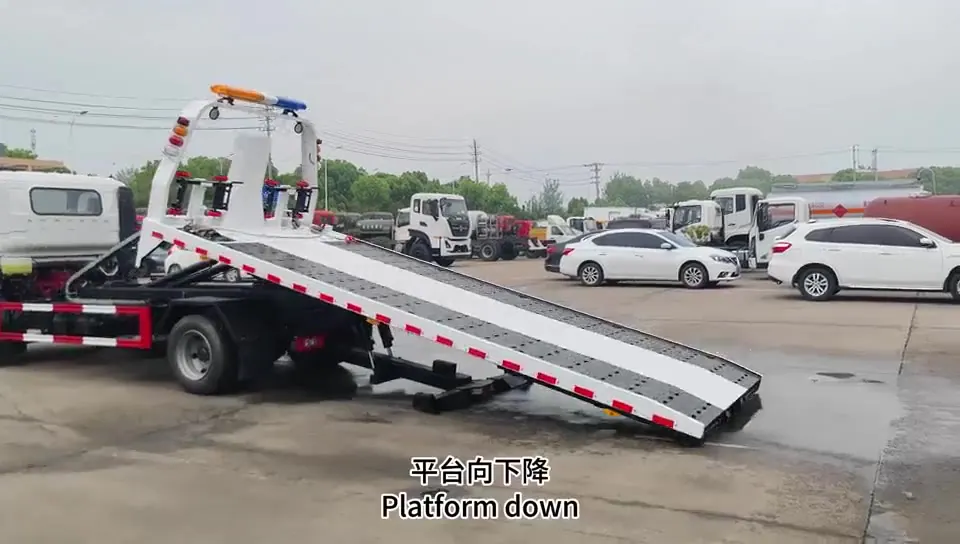

Vehicle layout and supporting views
The lead configuration image and supporting vehicle views show the layout of recovery equipment. They do not establish the identity of every item in the Mexico shipment or prove destination delivery, installation or a completed load test.
| Material | What it supports | Public access |
|---|---|---|
| KEEYAK Vehicle Story | One completed wrecker and two body packages, recorded for shipment to Manzanillo in February 2026. The public article is a first-party account; it is not an original commercial document. | Read article transcript |
| Original vehicle photographs | Visible body layout and equipment. They do not independently prove destination, shipment or acceptance. | View photographs below |
| Underlying order / transport records | The available record covers export and shipment. It does not document arrival, local registration or commissioning. No underlying commercial document is published on this page. | Read scope and source status |
Prepare a new order
We need to check component availability and the equipment package again for a new order. The new quotation and signed specification determine the supply. This project record is not a standing offer or approval for use at the destination.
Understanding the recorded specification
- Does the shipment record cover three completed wreckers?
- The record identifies one completed ISUZU wrecker and two wrecker-body packages. Only one item is a completed truck; installation of the packages at destination is not established.
